Title: Study “Use of micro CHP units in the electrical power range 1 – 5 kWe for

Berlin “

Project start and end: 2007

Location : Germany , Berlin

Description

The market study focused on producers and conversion techniques with a high development status. These products are close to market introduction and either undergo CEcertification procedures (currently) or are already mature products. Background of this classification is the precondition of a timely entrance to the market with the analysed products.

Out of this classification there was taken another determination of conversion techniques as Stirling engine, hot air engine and combustion engine. The present study excluded fuel cells and micro-gas-turbines because of their low development status and their unfavourable and inefficient application in the small-scale housing and the trading sector. 15 relevant products concerning micro-cogeneration were identified and analyzed. For further research on feasibility and application of micro-cogeneration the following products were chosen:

1. Lion Powerblock (free-piston steam engine)

2. WhisperGen MicroCHP ( Stirling engine),

3. Microgen M-CHP ( Stirling engine)

4. Ecowill (combustion engine),

5. Dachs (combustion engine),

6. ecopower Mini-CHP (combustion engine)

The profitability of the chosen products was analysed considering a cost benefit calculation of the product's application in single consumption states and different buildings in Germany .

The results of evaluation of the product's application were in most of the examples negative, a larger number of the case studies were analysed as economically inefficient. The energy costs of the different products varied in a range from 38 to 9,8 ct/kWh.

Technical and financial characteristics:

WhisperGen microCHP

• Technology: Stirling
• Electrical output capacity (kW): 1
• Thermal output capacity (kW): 12
• Cost of unit: 6.000 €
• Specific cost of unit (€/kWe): 4.500

Microgen M-CHP

• Technology: Stirling
• Electrical output capacity (kW): 1
• Thermal output capacity (kW): 15, 24, 36
• Cost of unit: 4.500 €
• Specific cost of unit (€/kWe): 4.090

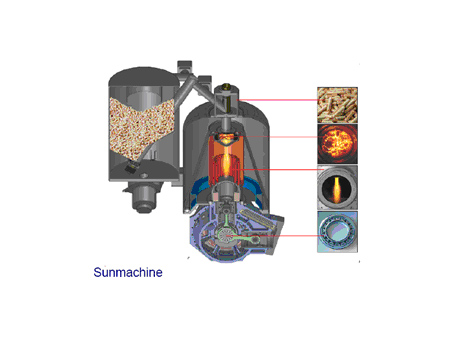

Sunmachine

• Technology: Stirling (wood pellets as fuel)
• Electrical output capacity (kW): 1,5 - 3
• Thermal output capacity (kW): 4,5 - 10
• Cost of unit: 23.000 €
• Specific cost of unit (€/kWe): 7.670

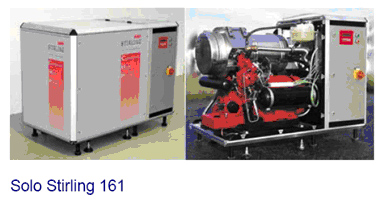

SoloStirling 161

• Technology: Stirling
• Electrical output capacity (kW): 2 – 9,5
• Thermal output capacity (kW): 8 - 26
• Cost of unit: 25.000
• Specific cost of unit (€/kWe): 2.630

Steamcell

• Technology: steam engine
• Electrical output capacity (kW): 0,5 – 4,6
• Thermal output capacity (kW): 2,5 - 25
• Cost of unit: target: max. 10.000 €
• Specific cost of unit (€/kWe): 2.170

Prototyp Cogen

• Technology: steam machine
• Electrical output capacity (kW): 0,6
• Thermal output capacity (kW): 3,5 - 22
• Cost of unit: ?
• Specific cost of unit (€/kWe): ?

Lion Powerblock

• Technology: free-piston steam engine
• Electrical output capacity (kW): 0,2 – 3
• Thermal output capacity (kW): 2 - 16
• Cost of unit: 12.500 €
• Specific cost of unit (€/kWe): 4.170

Ecowill

• Technology: combustion engine
• Electrical output capacity (kW): 1
• Thermal output capacity (kW): 3,25
• Cost of unit: 5.600 €
• Specific cost of unit (€/kWe): 4.170

Micro S8

• Technology: combustion engine
• Electrical output capacity (kW): 2 – 9,5
• Thermal output capacity (kW): 8 - 26
• Cost of unit: 19.000 €
• Specific cost of unit (€/kWe): 5.600

Energator GB4-8

• Technology: combustion engine
• Electrical output capacity (kW): 4
• Thermal output capacity (kW): 8
• Cost of unit: 14.863 €
• Specific cost of unit (€/kWe): 3.715

Ecopower

• Technology: combustion engine
• Electrical output capacity (kW): 1,3 – 4,7
• Thermal output capacity (kW): 4 – 12,5
• Cost of unit: 15.000 €
• Specific cost of unit (€/kWe): 3.829

Dachs

• Technology: combustion engine
• Electrical output capacity (kW): 5,5
• Thermal output capacity (kW): 10,3 – 12,5
• Cost of unit: 15.000
• Specific cost of unit (€/kWe): 3.272

Results (technical and economical including environmental impact):

In the case of the STIRLING-engines WhisperGen, MicroCHP and Microgen M-CHP there can be generated savings of 10% of the energy costs using it in existing one-family houses. Because of the less heat consumption (50%) in new build one-family-houses the feasibility of micro-cogeneration is much lower than in an older building-stock. Concerning new build one-family-houses the STIRLING is therefore at its feasibility limit. The free-pistonsteam-engine example Lion Powerblock is there the least cost efficient with an energy prize of 38 ct/kWh, what derogates the yearly energy costs.
